NETGEAR Orbi 750 RBR750: KPN and VLAN 6 setup notes for Orbi 770 buyers

I bought an Orbi 750 for attic Wi-Fi, then couldn't get online with KPN. In my setup, changing the PPPoE and VLAN settings finally got it connected.

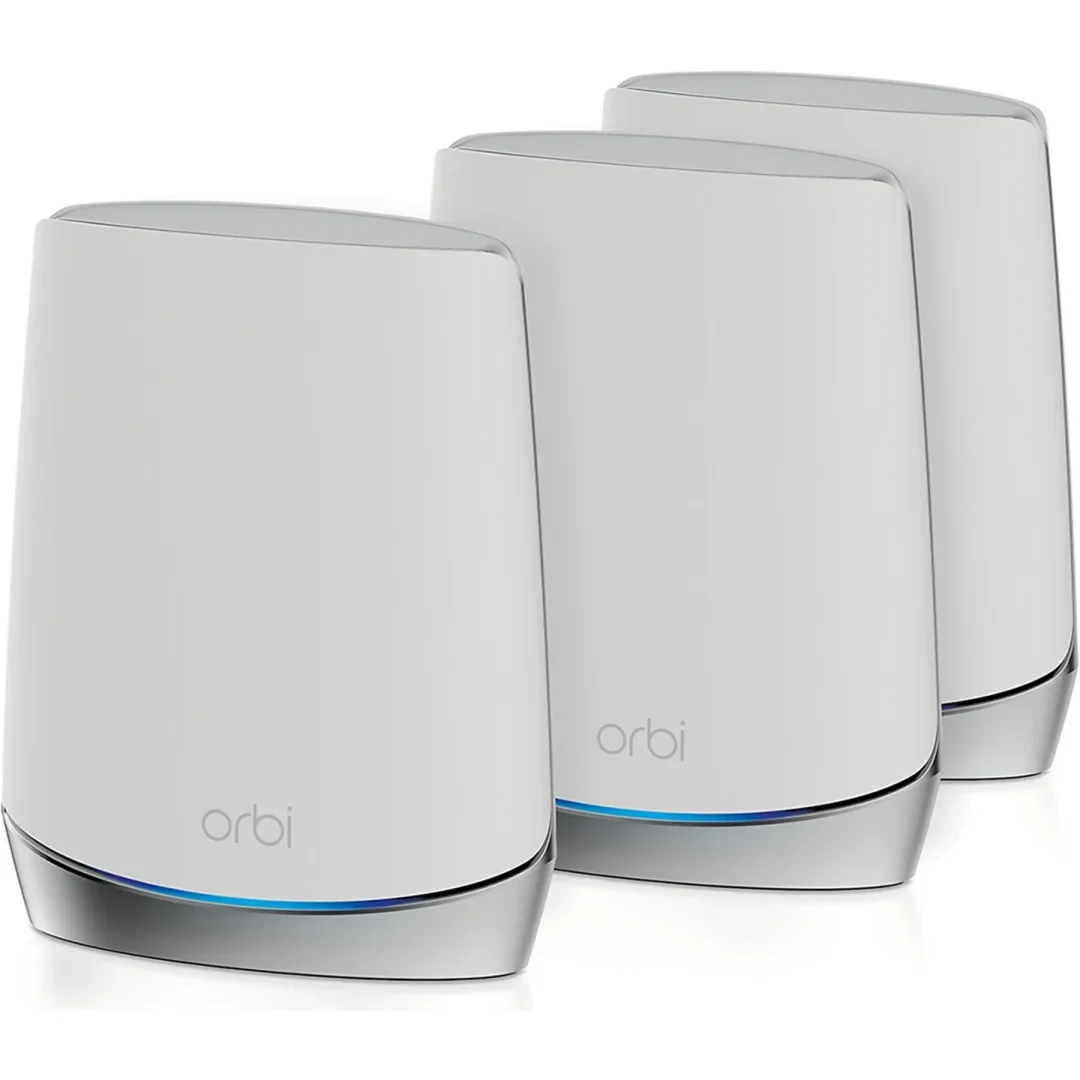

A stock product rendering included in the source post, showing three white Netgear Orbi mesh-router units.

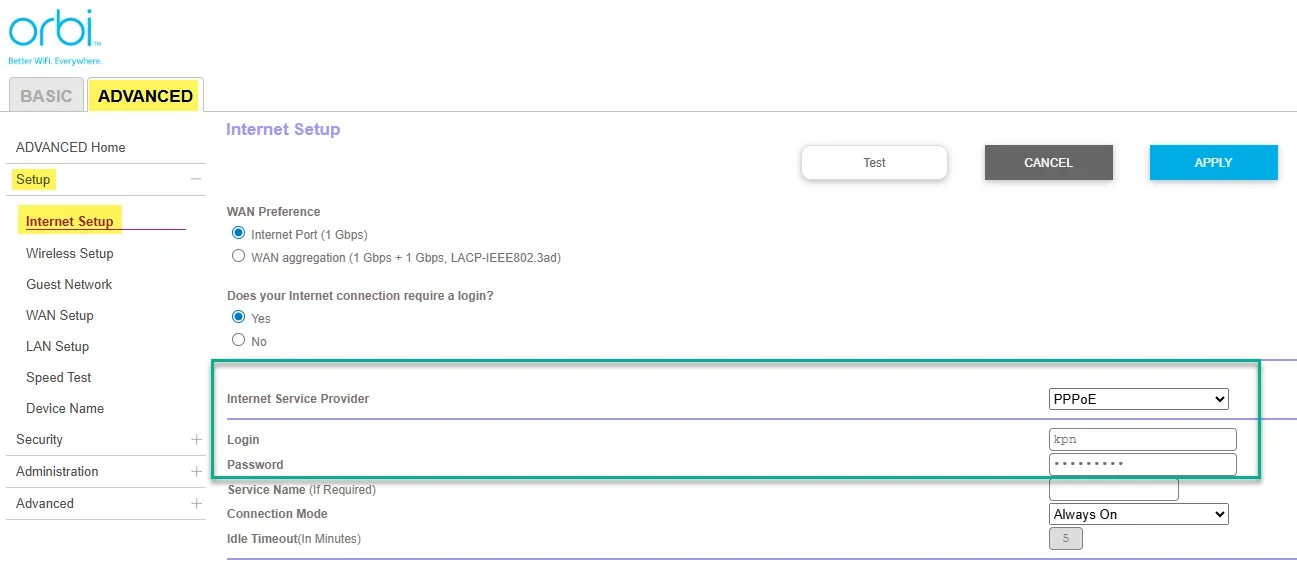

Netgear Orbi Advanced Internet Setup page showing Internet Port selected, login required, PPPoE chosen as the Internet Service Provider, and “kpn” entered in the Login field with the password obscured.

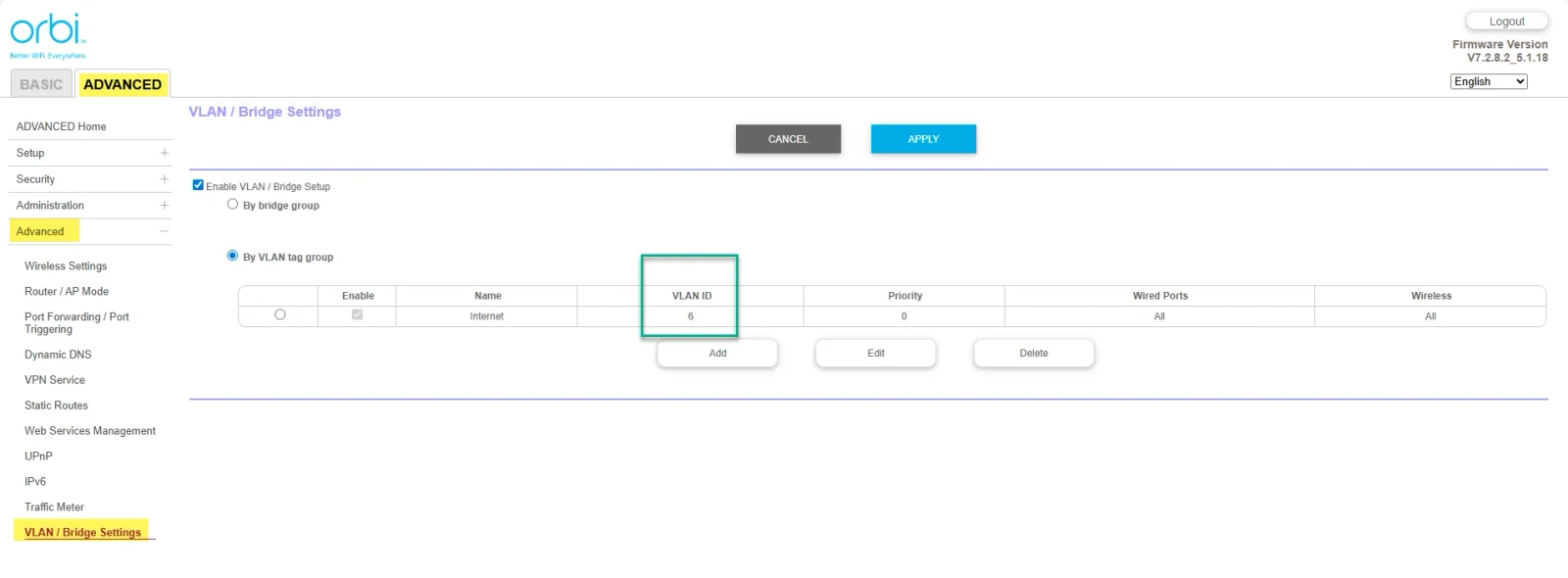

Web browser screenshot of the Netgear Orbi web administration panel showing the VLAN and Bridge Settings page with VLAN ID set to 6.

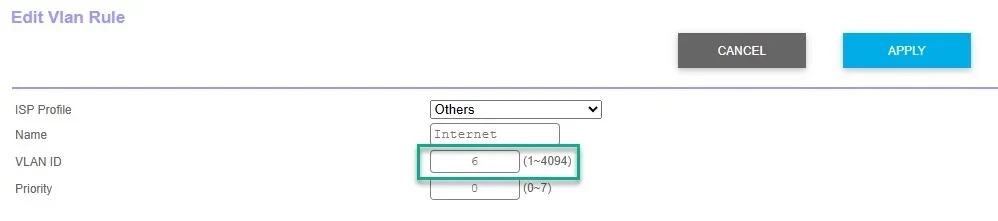

Router web management interface under Edit Vlan Rule showing the VLAN ID field set to 6 and highlighted in a cyan box.

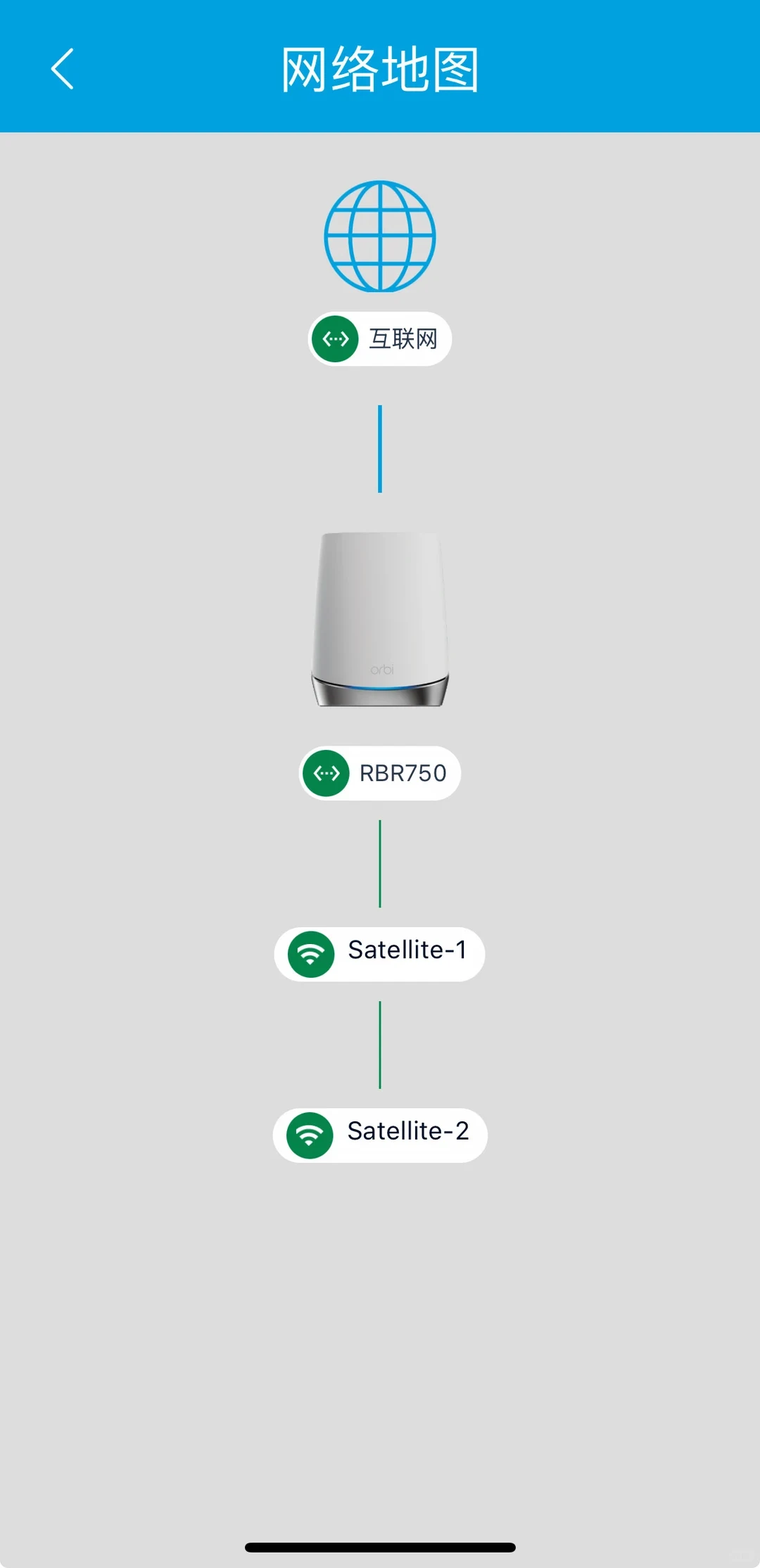

Screenshot of the Orbi mobile application interface showing the network map with the Internet icon connected to the RBR750 router, followed by Satellite-1 and Satellite-2 nodes.

Thanks to AI, I ended up becoming the network administrator.

The Wi-Fi signal in my home's attic was weak, with dead spots. I bought an Orbi 750 series system because I planned to set up a mesh network.

I never expected the long journey to get stuck at the very first step: after connecting the main router to the KPN modem, I had no internet at all!

After asking AI and tinkering for quite a while, I boiled it down to two key tips.

First, open 192.168.1.1 in a web browser, access the administrator interface, and choose manual setup.

  1. PPPoE settings:

    PPPoE needs to be enabled, but the username and password can be arbitrary. For example, username: kpn; password: kpn.

  2. VLAN settings:

    The VLAN ID must be set to 6. This is the crucial point!

Once I completed these two steps, I instantly had internet!

Source: V_V · Xiaohongshu · 2026-03-30 · Orbi750连接KPN设置指南. Search this Chinese title in Xiaohongshu to find the original post.

Before You Buy

Models in your region

The owner describes an Orbi 750 series system, while the configuration screenshots and network map identify the router as RBR750. The official material confirms the RBR750/RBS750 hardware family, but the KPN evidence does not establish the owner's upstream topology. The owner succeeded with VLAN ID 6, but that result should not be treated as a universal KPN setting.

Model in this review Related regional model What to know
NETGEAR Orbi 750 / RBR750 NETGEAR Orbi RBR750 / RBS750 (International English manual) The owner’s router is an RBR750 from the Orbi 750 family. The official manual identifies the matching RBR750 router and RBS750 satellite. Its scope is international English rather than a KPN-specific market listing.
NETGEAR Orbi 750 / RBR750 NETGEAR Orbi RBR750 — KPN connection context (Netherlands) This Netherlands KPN connection context concerns an RBR750 and says manual PPPoE credentials may be arbitrary but must not be empty. It does not confirm that every KPN connection uses the owner’s VLAN 6 setting or upstream arrangement.
NETGEAR Orbi 750 / RBR750 NETGEAR Orbi 770 Series RBE772 (US) The related US product is the NETGEAR Orbi 770 Series RBE772, a current same-brand Wi-Fi 7 alternative with 2.5 Gig ports. It is not the owner’s Orbi 750 hardware, and identical setup menus and satellite interoperability remain unconfirmed.
NETGEAR Orbi 750 / RBR750 NETGEAR Orbi 770 Series RBE772 (UK) The related UK product is the NETGEAR Orbi 770 Series RBE772, not a renamed Orbi 750. It is a local alternative rather than the owner’s product; router or access-point mode and ISP requirements should be checked separately.
Model in this review
NETGEAR Orbi 750 / RBR750
Related regional model
NETGEAR Orbi RBR750 / RBS750 (International English manual)
What to know
The owner’s router is an RBR750 from the Orbi 750 family. The official manual identifies the matching RBR750 router and RBS750 satellite. Its scope is international English rather than a KPN-specific market listing.
Model in this review
NETGEAR Orbi 750 / RBR750
Related regional model
NETGEAR Orbi RBR750 — KPN connection context (Netherlands)
What to know
This Netherlands KPN connection context concerns an RBR750 and says manual PPPoE credentials may be arbitrary but must not be empty. It does not confirm that every KPN connection uses the owner’s VLAN 6 setting or upstream arrangement.
Model in this review
NETGEAR Orbi 750 / RBR750
Related regional model
NETGEAR Orbi 770 Series RBE772 (US)
What to know
The related US product is the NETGEAR Orbi 770 Series RBE772, a current same-brand Wi-Fi 7 alternative with 2.5 Gig ports. It is not the owner’s Orbi 750 hardware, and identical setup menus and satellite interoperability remain unconfirmed.
Model in this review
NETGEAR Orbi 750 / RBR750
Related regional model
NETGEAR Orbi 770 Series RBE772 (UK)
What to know
The related UK product is the NETGEAR Orbi 770 Series RBE772, not a renamed Orbi 750. It is a local alternative rather than the owner’s product; router or access-point mode and ISP requirements should be checked separately.

What the owner actually configured

The owner bought the Orbi 750 series to address weak attic Wi-Fi and dead spots, then found that connecting the main router to the KPN modem did not produce internet access. The owner later reported success after enabling PPPoE and setting VLAN ID 6 through the web interface at 192.168.1.1.

The supplied app screenshot is consistent with the owner's reported outcome: it shows an internet connection followed by an RBR750 router and two satellites. That confirms the author's displayed network state after setup, but it is not a performance test of coverage, speed or stability.

Do not copy the VLAN setting without checking the connection

The owner succeeded with VLAN ID 6 on this KPN installation, but the source does not identify the upstream topology, so this should not be treated as a universal KPN setting. KPN's official guidance distinguishes connection types and directs users to connection-specific technical settings; the supplied source does not prove whether its upstream device is an ONT, bridge or routed gateway.

Before reproducing the setup, identify whether the Orbi is acting as the ISP-facing router or sits behind an existing router. The Orbi manual describes access-point mode behind an existing modem-router: connect the Orbi Internet port to the existing router's LAN port and obtain an address from it. That is a different topology from configuring PPPoE and VLAN settings on the Orbi itself.

PPPoE credentials and practical setup limits

The owner says the PPPoE username and password can be arbitrary, using kpn for both fields. KPN's supplied connection guidance says that manual PPPoE credentials may be arbitrary but must not be empty. Treat this as setup guidance for the documented KPN context, not proof that the same values apply to another provider or connection type.

The owner's procedure uses the browser administration interface and manual setup rather than establishing that the Orbi app can perform the same ISP configuration. Buyers should confirm access to the web interface and keep the existing modem or gateway arrangement clear before changing settings, because the correct steps depend on the network topology.

Regional alternatives are not automatic replacements

The RBR750/RBS750 manual supports identifying the owner's Orbi 750 hardware, while the US and UK Orbi 770 Series RBE772 pages describe a related, newer alternative rather than the same product. The RBE772 lists Wi-Fi 7 and 2.5 Gig ports; identical setup menus, behaviour and satellite compatibility with the Orbi 750 remain unconfirmed.

For a local purchase, match the product to the relevant market and verify router-versus-access-point operation and ISP requirements separately. The owner's successful RBR750 configuration is useful evidence for that installation, but it does not establish that a US or UK Orbi 770 kit will accept the same KPN procedure.
