PETKIT MAX: magnet and Hall-board repair notes for PuraMax 2 buyers

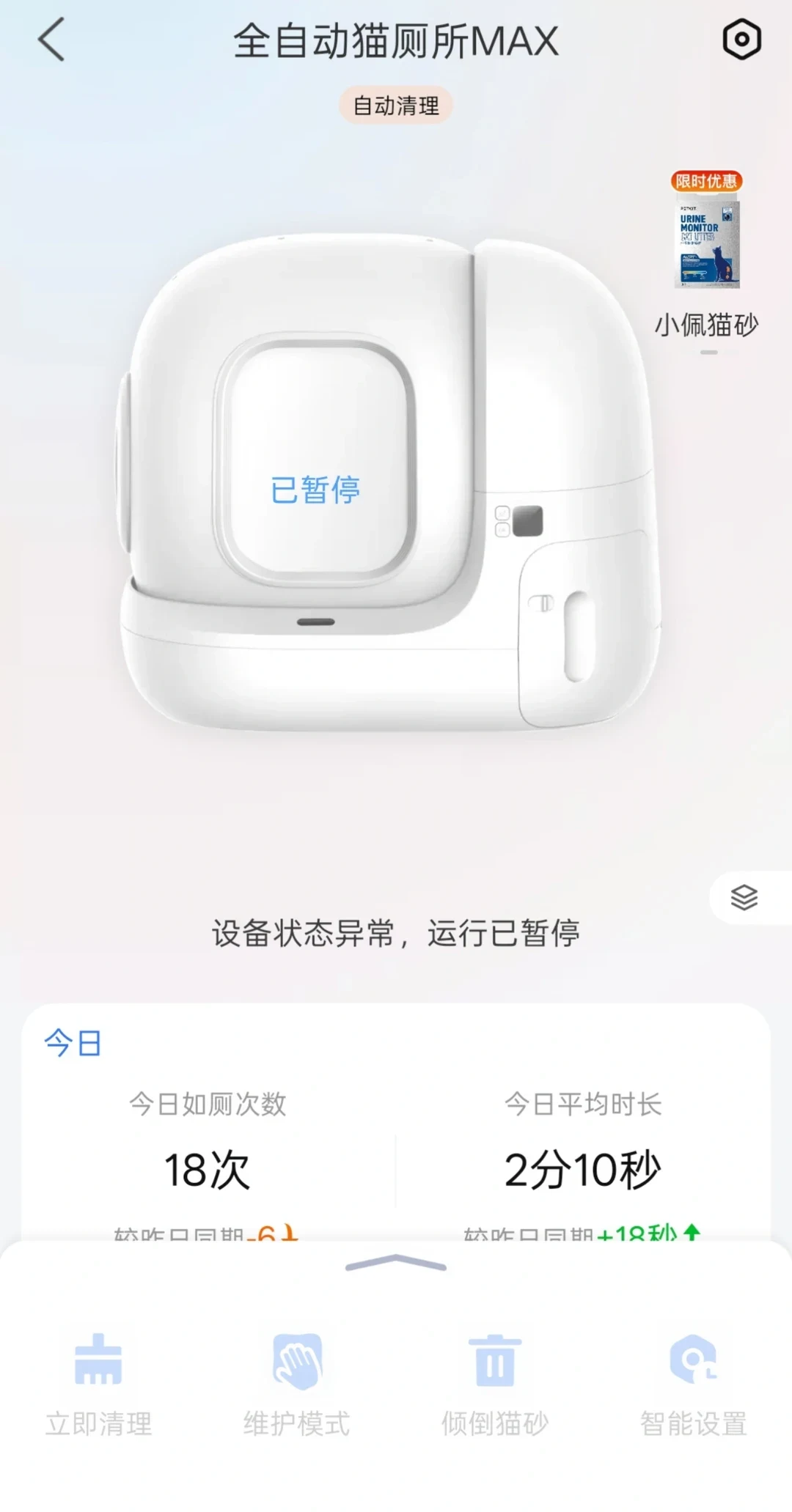

My PETKIT MAX kept failing to reset, even after I changed parts. A repair finally found a reversed magnet and a faulty Hall board—and it now works again.

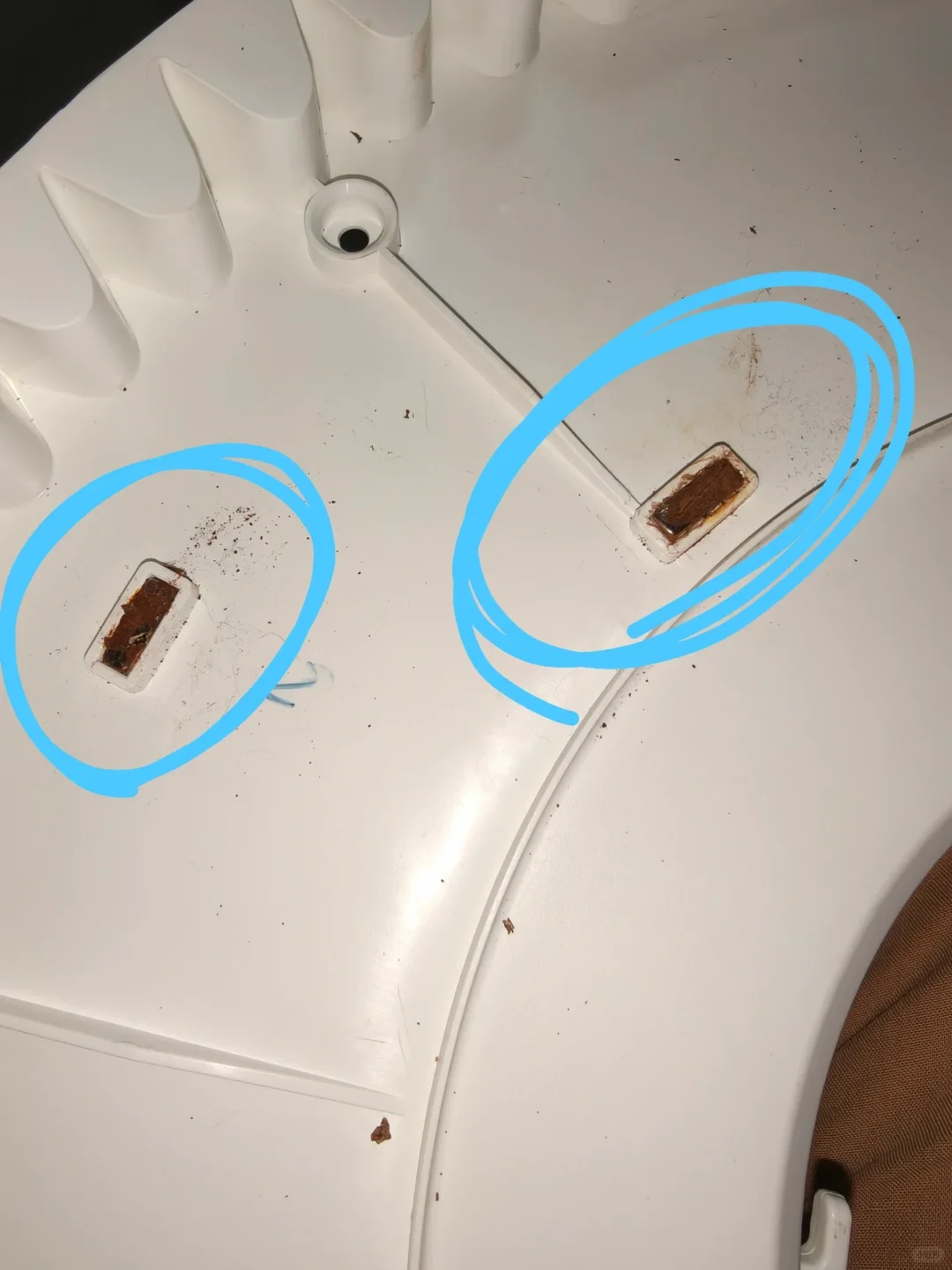

It kept resetting. Replacing the Hall board did not solve the problem, and after opening the globe’s gear assembly I found that the magnets inside were rusty and shedding debris. I wanted to replace them, but could not pry them out.
—I replaced the magnets, but it made no difference.
—I ordered another complete set of Hall boards, but they had not arrived yet.
I was hand-scooping………
—They arrived, and I replaced all five, but it still did not work. As soon as I pressed reset, the globe rotated forward to the end. During the return-to-home process, it kept triggering the sensor and could not complete the reset.
—I removed the top cover and globe, leaving the globe gear running, and found the problem: after the magnet passed the horizontal line, it could not trigger the limit sensor, so the globe continued rotating until it was pushed out and jammed.
—I sent it away for repair. Fortunately, it was in the same province, and I only had to send the main unit, the globe latch, the globe gear and the Hall boards I had bought myself. Round-trip shipping cost 100 yuan.
—The inspection found that the magnet had been installed backwards and that the waste-bin Hall board was faulty. They replaced the faulty board with the Hall board I had sent and did not charge me a repair fee. I have received it back, and it is now working normally.
Source: KL · Xiaohongshu · 2026-05-14 · 修好了)小佩猫砂盆max传感器触发. Search this Chinese title in Xiaohongshu to find the original post.
Before You Buy
Models in your region
The owner identifies the machine as the PETKIT MAX, while the international manual identifies the original MAX family as the PURA MAX P9902/T4. US and UK listings instead document the newer PuraMax 2, so the owner’s repair experience should not be treated as proof of identical parts, failure modes or service arrangements for those regional models.
| Model in this review | Related regional model | What to know |
|---|---|---|
| PETKIT MAX (original generation) | PETKIT PuraMax 2 (US) | The owner used the original MAX, not the US-listed PuraMax 2 successor. The US model has a 7 L waste bin, low entrance and upgraded seamless ShieldBase cylinder. Its official bundle includes a two-year warranty, but bundle contents differ from a standalone purchase. |
| PETKIT MAX (original generation) | PETKIT PuraMax 2 with PURA Air (UK) | The UK listing covers PuraMax 2 with PURA Air, a related successor rather than a confirmed relabel of the original Chinese MAX. The owner’s repair-part compatibility and sensor experience should not be transferred to this model. |
- Model in this review
- PETKIT MAX (original generation)
- Related regional model
- PETKIT PuraMax 2 (US)
- What to know
- The owner used the original MAX, not the US-listed PuraMax 2 successor. The US model has a 7 L waste bin, low entrance and upgraded seamless ShieldBase cylinder. Its official bundle includes a two-year warranty, but bundle contents differ from a standalone purchase.
- Model in this review
- PETKIT MAX (original generation)
- Related regional model
- PETKIT PuraMax 2 with PURA Air (UK)
- What to know
- The UK listing covers PuraMax 2 with PURA Air, a related successor rather than a confirmed relabel of the original Chinese MAX. The owner’s repair-part compatibility and sensor experience should not be transferred to this model.
What the owner’s repair establishes
The owner’s account describes repeated reset failures, unsuccessful magnet and Hall-board replacements, and a later gear test that exposed a limit-sensor problem. The final inspection attributed the failure to two specific findings: a backwards-installed magnet and a faulty waste-bin Hall board. The machine worked normally after the returned repair. This is one repair history, not a general failure rate or an official diagnostic procedure.
PETKIT PURA MAX P9902 (T4) · International English manual
The owner reports sending only the main unit and selected parts to a repair service in the same province, with 100 yuan in round-trip shipping and no repair charge for replacing the Hall board supplied by the owner. That outcome may be useful context for a similar local service decision, but the account does not establish service availability or pricing in another region.
Original MAX versus regional successors
The international manual identifies the original product family as PETKIT PURA MAX P9902/T4 and explicitly cautions that it does not establish identical internal repair boards for every Chinese or US batch. Buyers should therefore confirm the full model, board version and parts source before ordering a Hall board or magnet.
The US PuraMax 2 is a newer same-brand successor with a 7 L waste bin, low entrance and an upgraded seamless ShieldBase cylinder. The UK option is listed as PuraMax 2 with PURA Air. Neither listing confirms compatibility with the original MAX’s repair parts, so the owner’s sensor experience is most directly relevant to the original MAX family only.
Operating and maintenance limits
For the original PURA MAX P9902/T4, the manual lists dimensions of 620 × 538 × 552 mm, weight of about 9.5 kg including the adapter, and a 12 V, 24 W supply. These figures help with placement and power planning, but they should not be assumed to describe the newer PuraMax 2 models listed in the US and UK.
The manual says to turn off and unplug the unit before removing the cylinder. The cylinder and sifter can be washed, while the electronic base should only be wiped and never rinsed or immersed; reassembly should wait until washable parts are fully dry. These instructions are separate from the owner’s individual Hall-board and magnet repair.
What to check before buying or repairing
If a MAX repeatedly resets, the owner’s experience shows why replacing one part at a time may not identify the cause: magnets, their orientation, the gear’s limit position and more than one Hall board were involved in this case. A buyer or repairer should verify the exact regional model and obtain model-specific service confirmation rather than assuming that a PuraMax 2 part fits the original MAX.
The US PuraMax 2 bundle carries a two-year warranty according to the official listing, although its contents differ from a standalone purchase. The UK PuraMax 2 with PURA Air has no confirmed equivalent warranty term in the information reviewed here. Check the local package and service terms before comparing prices.
